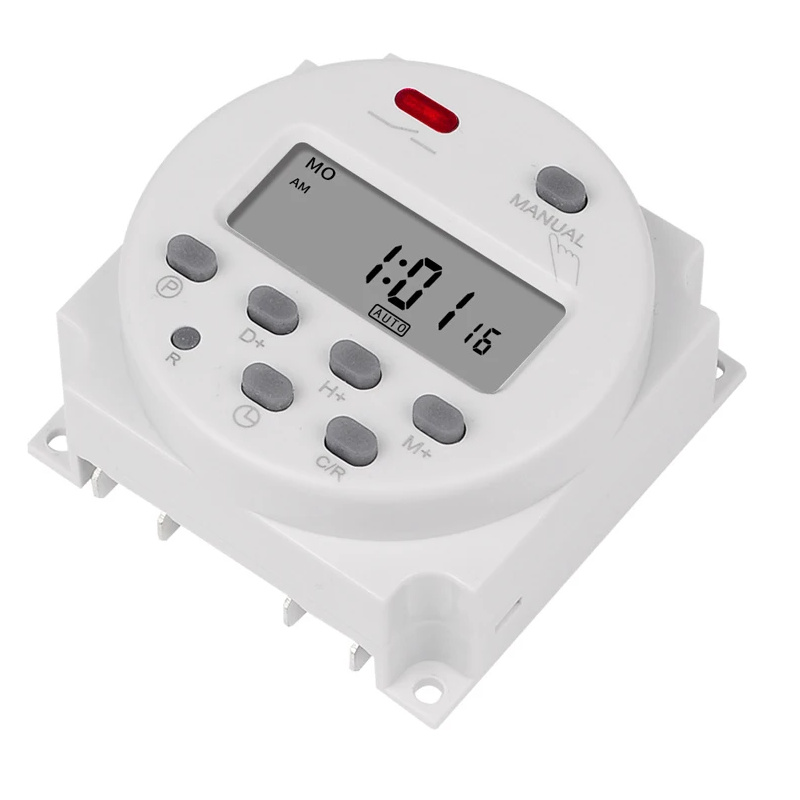

CN101 Weekly Programmable Timer – Digital DIN Rail Timer Switch

Take full control of your electrical devices with the CN101 Weekly Programmable Timer. This compact, DIN-rail mounted digital timer is designed for reliable automation of lights, pumps, fans, appliances, and more – saving you time, energy, and money.

Key Features:
Weekly Programmable: Pre-set schedules up to 7 days in advance
16 ON/OFF Programs: Flexible settings with manual override
Digital Accuracy: ±1 sec/day timekeeping, auto error correction (±30 sec/week)
LCD Display: Clear and easy-to-read screen
Lithium Battery Backup: Retains memory during power loss (3-year reserve)
Manual Override: Instant ON/OFF control without affecting programs
DIN Rail Mounting: Easy installation in distribution boxes or control panels

Technical Specifications:
Voltage Rating: 12V
Load Capacity: Resistive load up to 16A / 250VAC
Switching Contact: 1 changeover switch
Power Consumption: <2W max
Display: LCD
Service Life: Mechanical ≥10⁷, Electrical ≥10⁵ operations
Minimum Interval: 1 minute
Operating Temperature: -10°C to +40°C
Ambient Humidity: 35–85% RH
Weight: Approx. 60g
Dimensions: 60mm x 60mm x 47.6mm

Applications:
Lighting control (indoor/outdoor, garden, shop signs)
Heating, ventilation, and cooling systems
Irrigation and hydroponics pumps
Security systems
Industrial automation and energy saving
